The VLSI wire routing problem represents one of the most computationally intensive challenges in modern computer chip design. As semiconductor devices continue to shrink and complexity increases, the task of efficiently routing thousands of interconnections between components becomes increasingly critical. The fundamental objective is to route wires between specified endpoints while minimizing overlaps, as these overlaps directly correspond to the number of metal layers required in the fabrication process. More layers translate to higher manufacturing costs and increased complexity, making optimization essential for practical chip production.
For this project, I tackled the wire routing optimization problem using both shared memory (OpenMP) and distributed memory (MPI) parallel programming paradigms. The routing constraints required Manhattan-style paths with 90-degree bends only, and the optimization goal was to minimize the sum of squares of wire overlaps across a 2D grid. This metric serves as a proxy for the manufacturing cost, where even a single point requiring an additional metal layer increases the overall process complexity.
Fig 1: Initial state of the wire routing problem showing unrouted connections
My initial implementation began with a straightforward approach that precomputed all possible routes for each wire and stored them in a 2D array indexed by a map structure. However, performance profiling quickly revealed significant inefficiencies. The map operations, with their O(log N) complexity, introduced unnecessary overhead that could be eliminated through more efficient data structures. Additionally, the precomputation phase was consuming substantial memory and computation time without providing proportional benefits.
The first major optimization involved replacing the map-based storage with array-based indexing, where each wire corresponded to a specific array index. This simple change improved single-thread performance from 0.75 seconds to 0.65 seconds on the easy_4096 test case. However, more significant improvements were needed to achieve the target performance benchmarks.
Through detailed performance analysis using profiling tools, I discovered that 80% of the execution time was spent in the route cost computation function, which also accounted for over 60% of cache misses. This bottleneck identification led to a fundamental redesign of the algorithm. Rather than precomputing and storing complete routes, I realized that only the first bend point coordinates were necessary to reconstruct any Manhattan-style path, since there are exactly (Δx + Δy) possible routes between any two points.
The within-wires parallelization strategy focused on exploiting parallelism within the route exploration for individual wires. For each wire, multiple threads would simultaneously evaluate different potential routes, computing their costs independently. Since route cost calculations are inherently independent operations, this approach provided excellent opportunities for parallel execution without complex synchronization requirements.
I implemented static task assignment to distribute route evaluations uniformly across available threads, avoiding the runtime overhead of dynamic scheduling for this uniform workload. The key optimization involved eliminating the precomputation phase entirely and computing routes on-demand using only the bend point coordinates. This reduced memory pressure and improved cache locality, as threads no longer needed to access large precomputed route arrays.
The within-wires approach achieved remarkable speedup on smaller problems, reaching 4.8x speedup with 8 threads on the easy test cases. However, performance gains diminished on larger problems due to increased cache contention and memory access patterns that became less favorable as the problem size scaled.
The across-wires strategy represented a more ambitious parallelization approach, processing multiple wires simultaneously in parallel batches. This method required careful synchronization to ensure thread-safe updates to the shared occupancy matrix, as multiple wires could potentially update the same grid locations concurrently. I implemented atomic operations for occupancy matrix updates, allowing different grid cells to be updated simultaneously while preventing race conditions on individual cells.
Dynamic scheduling proved essential for this approach, as the computational cost of routing different wires varied significantly based on their endpoint coordinates and the current state of the occupancy matrix. The batching mechanism allowed for periodic synchronization points while maintaining parallel efficiency. Batch size became a critical tuning parameter, representing a tradeoff between parallel efficiency and solution quality.
The across-wires implementation demonstrated excellent scalability, achieving 4.6x speedup with 8 threads even on larger problem instances. The approach proved more robust to problem size scaling compared to the within-wires method, maintaining good performance characteristics across different test cases.
Building upon the OpenMP implementations, I developed an MPI-based version capable of scaling across multiple compute nodes. The initial design challenge involved determining the optimal communication strategy. Early experiments with broadcasting complete occupancy matrices between processors proved inefficient due to the large communication overhead relative to computation time.
The breakthrough came with implementing a communication strategy that exchanged only wire route updates using MPI_AllGather operations. This approach dramatically reduced communication volume while maintaining the necessary information synchronization between processors. Batch processing became even more critical in the MPI implementation, as it amortized communication costs across multiple wire routing operations.
Load balancing presented unique challenges in the distributed memory environment. Initial implementations suffered from significant load imbalance, which I addressed through randomized wire distribution and ensuring all processors participated in computation rather than using a manager-worker paradigm. The MPI_Scatter operation provided efficient wire distribution across processors while maintaining good load balance characteristics.
The performance evaluation revealed distinct scaling characteristics for different problem sizes and parallelization approaches. On smaller test cases (easy_4096), both OpenMP implementations achieved near-linear speedup, with the within-wires approach reaching 4.8x speedup and the across-wires approach achieving 4.6x speedup with 8 threads. Cache performance analysis showed that smaller problems benefited from reduced cache misses as thread count increased, as more of the working set could fit in the combined cache hierarchy.
Larger problem instances (medium and hard test cases) exhibited different scaling behavior. The across-wires approach maintained better performance characteristics on larger problems, while the within-wires approach showed diminishing returns. This difference stemmed from the memory access patterns and cache behavior under different parallelization strategies. The across-wires approach benefited from better data locality as threads worked on spatially related portions of the problem.
The MPI implementation successfully scaled to 128 processors across multiple compute nodes, achieving 3.5x speedup with 8 processors on easy test cases. However, scaling efficiency decreased on larger problems, with medium and hard test cases showing good scaling only up to 4 processors before communication overhead began to dominate. This limitation highlighted the importance of communication-to-computation ratios in distributed memory parallelization.
Cache miss analysis provided valuable insights into the performance characteristics. For small problems, increasing thread count generally reduced total cache misses as more cache resources became available. However, larger problems showed the opposite trend, with cache misses increasing as thread count grew due to increased memory pressure and reduced cache effectiveness per thread.

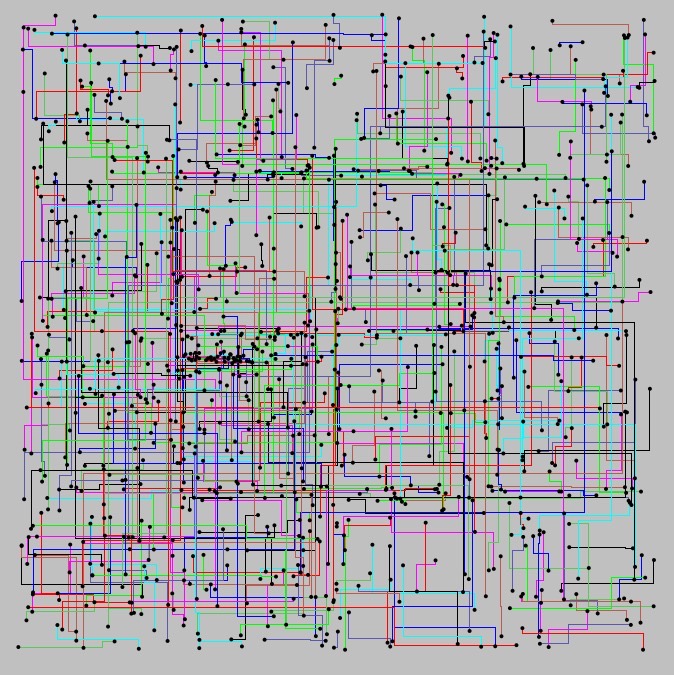

Fig 2: Optimized wire routing after parallel implementation showing minimal overlaps
The most significant technical challenge involved balancing computation and communication costs across different parallelization strategies. In the OpenMP implementations, ensuring thread-safe updates to the shared occupancy matrix without excessive synchronization overhead required careful design of atomic operations and data access patterns. The key insight was recognizing that fine-grained locking would be prohibitively expensive, leading to the atomic update strategy for individual grid cells.
For the MPI implementation, the critical insight was understanding that communication overhead could be dramatically reduced by transmitting only route updates rather than complete occupancy matrices. This optimization reduced communication volume by orders of magnitude while maintaining the necessary synchronization between processors. The challenge of managing stale occupancy information (where processors worked with slightly outdated information) required careful balancing between performance and solution quality.
Performance debugging revealed the importance of cache behavior in parallel implementations. The project demonstrated how memory access patterns that work well in sequential code can become problematic in parallel implementations due to cache contention and false sharing. Understanding these effects was crucial for achieving good scalability, particularly in the transition from small to large problem sizes.
Comprehensive testing across multiple problem sizes and hardware configurations validated the effectiveness of the parallel implementations. The sensitivity studies revealed important tradeoffs between solution quality and computational performance. Varying the probability of choosing random routes (simulated annealing parameter) showed the expected tradeoff between computation time and solution quality, with higher probabilities reducing computation time at the cost of potentially suboptimal solutions.
Problem size sensitivity analysis demonstrated the importance of algorithmic choices in parallel implementations. Smaller problems benefited from different optimization strategies compared to larger problems, highlighting the need for adaptive approaches in real-world applications. The batch size experiments confirmed that this parameter significantly impacts both performance and solution quality, requiring careful tuning for optimal results.
Cross-platform validation between the GHC and PSC computing environments revealed the importance of hardware characteristics in parallel performance. The PSC environment showed different scaling characteristics, with the across-wires approach maintaining better performance similarity to the GHC results compared to the within-wires approach. This validated the robustness of the across-wires parallelization strategy across different hardware architectures.
The circle rendering problem presents a classic parallel computing challenge: efficiently rendering thousands of semi-transparent circles on a 2D canvas while maintaining correct color blending and visual fidelity. The sequential approach processes each circle individually across the entire image, but this becomes computationally prohibitive when dealing with large numbers of circles and high-resolution images. The fundamental challenge lies in parallelizing the rendering pipeline while preserving the order-dependent nature of alpha blending and avoiding race conditions when multiple circles contribute to the same pixel.
The problem complexity scales quadratically with both the number of circles and image resolution. Each pixel potentially requires evaluation against every circle in the scene to determine coverage and color contribution. For a typical test case with thousands of circles on a high-resolution canvas, this translates to millions of circle-pixel intersection tests, making GPU acceleration essential for real-time performance.
My CUDA implementation employed a pixel-based decomposition strategy, organizing the image into 32×32 pixel blocks with each block assigned to a CUDA thread block. This spatial decomposition approach leveraged the GPU's hierarchical thread organization, where each thread block contained 1024 threads corresponding to the pixels within that block. The choice of 32×32 blocks optimized GPU occupancy while maintaining manageable shared memory requirements for intermediate computations .
The rendering algorithm operated in iterative batches, processing circles in groups equal to the number of threads per block. This batching strategy addressed the memory limitations inherent in GPU shared memory while enabling efficient parallel processing of circle data. Each iteration involved three distinct phases: intersection testing, prefix sum compaction, and pixel shading, with careful synchronization between phases to maintain data consistency.
The first phase of each iteration involved parallel intersection testing, where each thread evaluated whether a specific circle intersected with the current thread block's spatial region. This block-level culling significantly reduced the computational overhead by eliminating circles that had no visual contribution to the pixels within the block. The intersection test computed the minimum distance between the circle center and the block's bounding rectangle, comparing it against the circle's radius to determine potential overlap.
This spatial optimization proved crucial for performance, as it transformed the problem from O(n×m) complexity (where n is the number of circles and m is the number of pixels) to a more manageable workload where each pixel only processed relevant circles. The effectiveness of this optimization varied with circle distribution and size, showing dramatic improvements in scenarios with spatially localized circles.
Following intersection testing, the algorithm employed a parallel prefix sum operation to compact the list of relevant circles for each block. This compaction phase used shared memory arrays to store boolean intersection results, then computed exclusive prefix sums to determine the final storage locations for circles that intersected the current block. The prefix sum implementation utilized the efficient up-sweep and down-sweep phases, minimizing shared memory bank conflicts and maximizing parallel efficiency.
The compaction process eliminated the need for conditional branching during the pixel shading phase, ensuring uniform workload distribution across threads. This approach maintained high GPU utilization by avoiding thread divergence that would occur if threads had to skip processing for non-intersecting circles.
The final phase involved parallel pixel shading, where each thread computed the final color for its assigned pixel by evaluating contributions from all relevant circles. The shading algorithm implemented proper alpha blending, accumulating color contributions in back-to-front order to maintain visual correctness. Each circle's contribution was computed using distance-based coverage calculations, determining the circle's influence on the pixel's final color.
The color composition process required careful handling of floating-point precision and alpha channel mathematics. The implementation used single-precision floating-point arithmetic throughout the shading pipeline, balancing computational efficiency with sufficient color accuracy for visual applications. The final pixel colors were clamped to valid ranges and converted to appropriate integer formats for display.
Effective utilization of GPU memory hierarchy was central to achieving high performance. The implementation strategically used shared memory within each thread block to store intermediate results from intersection testing and circle compaction. This approach significantly reduced global memory accesses, which represent the primary bottleneck in GPU applications due to their high latency and limited bandwidth.
The batching strategy was specifically designed to fit within shared memory constraints while maximizing data reuse. By processing circles in batches equal to the thread block size, the algorithm ensured that shared memory usage remained predictable and within hardware limits. This design choice enabled the algorithm to scale effectively across different GPU architectures with varying shared memory capacities.
The implementation employed strategic synchronization points using __syncthreads() barriers to coordinate parallel execution phases. The first synchronization point occurred at the beginning of each iteration, ensuring all threads completed the previous iteration before starting new computations. This prevented data races in shared memory arrays that stored intersection results and intermediate computations.
Additional synchronization points were placed after intersection testing and prefix sum computation, ensuring that all threads completed their assigned work before proceeding to subsequent phases. This synchronization strategy maintained correctness while minimizing performance overhead, as the barriers only occurred at natural phase boundaries where synchronization was mathematically required.
Performance evaluation revealed that the primary bottleneck occurred during the pixel shading phase, specifically in the ShadePixel function calls. Despite the block-level intersection culling, many pixels still processed circles that ultimately contributed minimal or no color due to distance-based coverage calculations. This represented unnecessary computational overhead, particularly in scenarios with large circles that intersected blocks but covered only small portions of the pixels within those blocks.
The bottleneck identification process involved systematic timing analysis of different algorithm phases. By instrumenting the code with CUDA events and profiling tools, I determined that approximately 70-80% of execution time was spent in pixel shading operations, with the remainder distributed across intersection testing and memory management operations. This analysis guided optimization efforts toward more efficient pixel-level culling strategies.
To address memory bandwidth limitations, the implementation employed several optimization strategies. The batching approach reduced global memory accesses by processing circles in groups that fit within shared memory, enabling high-speed intra-block communication. Additionally, the algorithm minimized redundant memory transfers by computing circle parameters on-demand rather than pre-loading complete datasets.
Coalesced memory access patterns were maintained throughout the implementation, ensuring that threads within each warp accessed contiguous memory locations whenever possible. This optimization was particularly important for loading pixel data and storing final rendering results, where uncoalesced accesses would significantly impact performance due to increased memory transaction overhead.
The development process involved exploring multiple parallelization strategies before arriving at the final pixel-based approach. The initial implementation attempted circle-based decomposition, where each thread rendered a complete circle across the entire image. However, this approach suffered from severe synchronization overhead, as multiple circles contributing to the same pixel required atomic operations or locks to maintain rendering correctness.
The atomic operations approach proved fundamentally flawed for this application, as the high contention for pixel updates essentially serialized the rendering process. Pixels receiving contributions from multiple circles became severe bottlenecks, eliminating the parallel processing advantages that motivated the GPU implementation. This experience highlighted the importance of minimizing shared resource contention in parallel algorithm design.
The intermediate approach involved naive pixel-based parallelization, where each thread processed a single pixel but evaluated all circles in the scene. While this eliminated the synchronization problems of the circle-based approach, it suffered from extreme computational inefficiency due to unnecessary circle evaluations. The vast majority of circle-pixel pairs resulted in no visual contribution, representing wasted computational resources.
The final implementation demonstrated significant performance improvements over sequential rendering approaches, achieving speedups ranging from 10x to 50x depending on scene complexity and circle distribution. Test cases with spatially localized circles showed the highest performance gains, as the block-level intersection culling proved most effective in these scenarios. Conversely, scenes with uniformly distributed circles across the entire canvas showed more modest improvements due to reduced culling efficiency.
Scalability analysis revealed that performance scaled well with GPU compute capability, showing consistent improvements when moving from lower-end to higher-end GPU architectures. The implementation effectively utilized available parallel processing resources, maintaining high occupancy rates across different hardware configurations. Memory bandwidth limitations became the primary constraint on very high-end GPUs, suggesting opportunities for further optimization in future implementations.
The project provided valuable insights into GPU programming best practices and parallel algorithm design principles. The importance of spatial locality became particularly evident, as algorithms that could exploit spatial coherence in the problem domain achieved significantly better performance than those that could not. This insight applies broadly to graphics and simulation applications where spatial relationships are fundamental to the computational problem.
The development process also highlighted the critical importance of profiling and performance measurement in parallel programming. Initial assumptions about bottlenecks proved incorrect in several cases, emphasizing the need for data-driven optimization decisions. The systematic approach to identifying performance limitations through careful instrumentation and measurement proved essential for achieving optimal results.
Finally, the project demonstrated the value of iterative algorithm development in parallel computing. The progression from naive approaches through increasingly sophisticated optimizations illustrated how complex parallel algorithms often require multiple design iterations to achieve optimal performance. Each iteration provided learning opportunities that informed subsequent improvements, ultimately leading to a highly optimized final implementation.
The Lock-free Priority-aware Work Stealing project addresses a fundamental limitation in modern parallel computing: the inability of traditional work-stealing schedulers to respect task priorities while maintaining scalability. While classic work-stealing algorithms excel at load balancing and scalability through their decentralized design, they are inherently priority-oblivious, treating all tasks equally regardless of their computational importance or urgency. This limitation becomes particularly problematic in applications such as branch-and-bound algorithms, graph search, and soft real-time systems, where the execution order of tasks directly impacts computational efficiency and result quality.
The challenge lies in integrating priority-awareness into work-stealing without compromising the scalability benefits that make work-stealing attractive. Traditional priority scheduling relies on centralized priority queues, which introduce synchronization bottlenecks that can severely limit parallel performance. The goal was to develop a scheduler that maintains the decentralized, scalable nature of work-stealing while ensuring that higher-priority tasks are executed preferentially across all worker threads, minimizing priority inversion and maintaining high throughput under dynamic workloads.
The implementation underwent several critical design iterations, each addressing specific limitations discovered during development. The initial approach maintained a single lock-free deque per processor, storing tasks of all priorities together. While conceptually simple, this design suffered from frequent priority inversions and high computational overhead, as processors had to scan entire deques to locate high-priority tasks, resulting in poor cache performance and inefficient scheduling.
The second iteration introduced a global state mechanism to coordinate the current priority level across all processors. This centralized approach ensured that only the highest-priority tasks were executed at any given time, but it introduced severe synchronization bottlenecks and race conditions. The frequent global coordination required significant contention management and ultimately proved impractical for high-performance workloads due to scalability limitations.
The final design adopted a fully decentralized model where each processor independently tracked its local priority level. This approach eliminated global bottlenecks and allowed processors to make independent progress while still maintaining priority awareness. The key insight was that processors would exhaust all local and stealable tasks at their current priority level before incrementing to the next priority, ensuring strong priority guarantees without centralized coordination.
The core implementation utilized C with low-level atomic operations, specifically compare-and-swap (CAS) primitives, to construct thread-safe, non-blocking data structures. Each processor maintained a set of independent lock-free deques, with each deque dedicated to tasks of a specific priority level. The implementation supported three priority levels, with priority 0 representing the highest priority tasks.
The lock-free deques employed the Chase-Lev design pattern, where local operations occurred at one end of the deque while remote processors performed steal operations from the opposite end. This design minimized contention by spatially separating local and remote access patterns. Explicit memory barriers using __sync_synchronize() were strategically placed at key points in push, pop, and steal operations to ensure correct memory ordering and visibility of updates across all processor cores.
The stealing mechanism implemented a sophisticated search strategy to balance priority enforcement with performance overhead. Rather than exhaustively searching all processors for stealable tasks at the current priority level, the implementation limited steal attempts to approximately √n processors out of n total processors. This optimization significantly reduced the overhead of unsuccessful steal attempts while maintaining reasonably strong priority guarantees, though it introduced the possibility of occasional priority inversions.
The implementation carefully addressed various race conditions inherent in concurrent work-stealing systems. Success steal scenarios occurred when an idle processor successfully acquired a task from another processor's deque, demonstrating normal load balancing behavior. Race success steal scenarios involved multiple processors simultaneously attempting to steal the same task, with CAS operations ensuring that only one processor succeeded while others gracefully handled failure by incrementing their local priority.
Failed steal scenarios represented situations where all processors at the same priority level had empty deques, causing all steal attempts to fail and triggering priority level increments across the system. Priority inversion scenarios occurred when concurrent steal attempts resulted in some processors advancing to higher priority levels before all tasks at the current priority were completed, though the system eventually rebalanced when lower-priority work was finished.
The CAS-based synchronization strategy tolerated occasional failures without requiring expensive retry mechanisms. A failed CAS operation during stealing did not guarantee that the target deque was empty, only that another processor accessed it concurrently. This design philosophy accepted occasional priority inversions in favor of minimizing synchronization overhead and maintaining high throughput.
Comprehensive performance evaluation revealed distinct scaling characteristics across different core counts and workload distributions. The system demonstrated excellent scalability when moving from 4 to 8 cores, with execution time decreasing by more than half due to effective parallel work distribution. The primary factor enabling this performance was the availability of sufficient tasks to keep all cores busy, where the benefits of parallelization significantly outweighed the overhead of task stealing and synchronization.
However, scaling from 8 to 12 cores showed diminishing returns or even performance degradation in some scenarios . This behavior occurred when the total number of tasks was insufficient to effectively utilize all available cores, causing additional cores to spend more time idle or competing for tasks through stealing mechanisms. The synchronization overhead associated with lock-free stealing operations became more significant as core count increased without proportional increases in available parallelism.
Task distribution significantly impacted stealing behavior and overall system performance. In scenarios with highly skewed task distributions, where priority 0 tasks were unevenly assigned to different processors, some processors quickly exhausted their local high-priority work while others retained substantial task queues. This imbalance led to increased steal attempts for priority 0 tasks, demonstrating the importance of priority-aware stealing in maintaining good scheduling behavior under uneven workloads.
The implementation revealed fundamental trade-offs between strict priority enforcement and execution efficiency . The original design enforced perfect priority ordering by requiring processors to check all other processors before advancing to the next priority level, eliminating priority inversions but introducing significant overhead. The optimized approach limited steal attempts to √n processors, dramatically improving performance while accepting occasional priority inversions.
Experimental results showed that priority inversions increased roughly quadratically with the number of cores when using the limited checking approach. This trade-off proved acceptable in practice, as the performance benefits of reduced stealing overhead significantly outweighed the occasional out-of-order execution, particularly in workloads where strict priority ordering was desirable but not absolutely critical.
Comparison with a naive single-deque approach revealed that the priority-aware system was approximately 15% to 30% slower in terms of overall execution time. However, this overhead was justified by dramatically improved completion times for high-priority tasks, with more than threefold improvements in worst-case scenarios where critical tasks might otherwise be delayed until the end of execution.
The implementation was specifically optimized for modern shared-memory architectures with hardware support for atomic instructions and efficient memory coherence protocols such as MESI. The lock-free design leveraged these hardware features to enable scalable synchronization among worker threads without the overhead of traditional locking mechanisms.
Cache performance played a crucial role in overall system efficiency. The multi-deque design improved cache locality by grouping tasks of similar priority together, reducing the cache misses associated with priority-based task selection. Memory barriers were strategically placed to ensure correctness while minimizing performance impact, balancing the need for memory ordering guarantees with execution efficiency.
The stealing mechanism was designed to minimize false sharing and cache contention by ensuring that processors primarily accessed their local deques for task insertion and removal. Remote access patterns during stealing operations were optimized to reduce cache invalidation overhead while maintaining the necessary synchronization guarantees for correct concurrent operation.
The evaluation encompassed multiple test scenarios designed to stress different aspects of the priority-aware work-stealing system. Test scenarios included uniform task distributions with equal execution times, arbitrary execution time variations, unequal task distributions across priority levels, and completely unbalanced processor loads. Each scenario provided insights into different performance characteristics and system behaviors.
The Fibonacci calculation benchmark provided realistic irregular workloads with varying computational requirements. Tasks were distributed across priority levels in non-uniform patterns to simulate real-world applications where task priorities and computational complexity are not uniformly distributed. This benchmark effectively demonstrated the system's ability to handle dynamic workloads while maintaining priority guarantees .
Scaling experiments revealed the relationship between task granularity and optimal core utilization. With sufficient task counts, the system scaled well to 8 cores, but performance leveled off or degraded beyond that point when task counts were insufficient to maintain high utilization. These results highlighted the importance of matching parallelism levels to available work quantities in parallel system design.
The project demonstrated that effective priority-aware parallel scheduling requires careful balance between priority enforcement strictness and execution efficiency. Perfect priority ordering proved too expensive for practical use, while completely priority-oblivious scheduling failed to provide necessary guarantees for priority-sensitive applications. The √n stealing strategy represented an effective middle ground that maintained strong priority guarantees while achieving acceptable performance.
The decentralized approach proved superior to centralized coordination mechanisms, avoiding synchronization bottlenecks while maintaining system-wide priority awareness. This insight applies broadly to parallel system design, where decentralized algorithms often provide better scalability characteristics than their centralized counterparts, even when coordination is necessary.
The implementation revealed the importance of hardware architecture considerations in lock-free algorithm design . The success of the CAS-based approach depended critically on efficient hardware support for atomic operations and memory coherence protocols. Future implementations could benefit from exploring architecture-specific optimizations and alternative synchronization primitives as they become available.
